Sirenas y Parlantes-ALPHASL 200 Watt

SKU: 411529f9fb48 Categorías: ,

Descripción

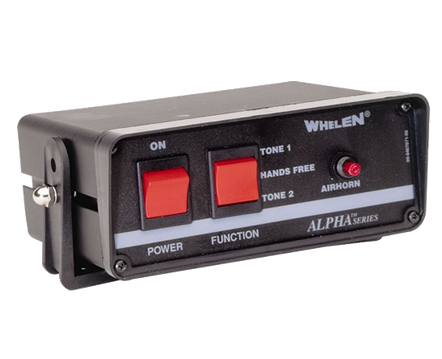

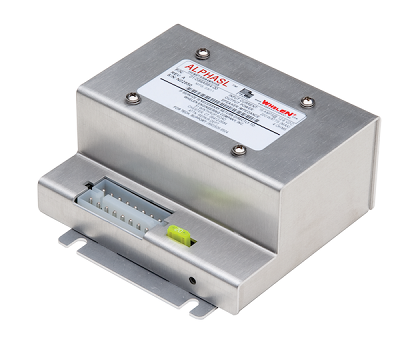

The economically priced Whelen ALPHASL
Remote Siren delivers 200 Watts of siren warning power. This siren
features Hands-Free operation, multiple Scan-Lock programmable warning
tones and horn ring override capability. The ALPHASL siren offers easy
set-up and configuration to meet local requirements without special
ordering. This siren is not appropriate for motorcycle use.

Features:

  • Scan-Lock feature allows you to toggle through 15 siren tones.
  • Operates one or two 100 Watt siren speakers.
  • Compact design is perfect for undercover and volunteer applications.
  • Control siren tone through horn ring or separate switches.
  • Hands-Free operation lets you cycle through two or three siren tones using horn or auxiliary control.
  • Meets Class A requirements with most 100 watt speakers.
  • Harmonically rich composite Air Horn tones.
  • Output open/short circuit protection.

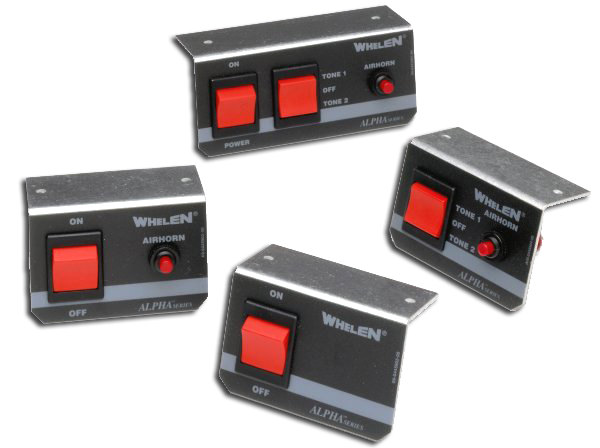

  • Five optional switch panels available.
  • Will also operate from customer supplied switching controls.

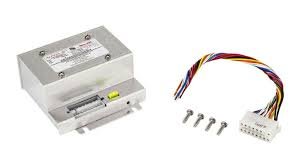

  • Pre-wired with one 16 pin quick disconnect plug for easy service and fast replacement.
  • Easy to install.

Specifications:

  • Voltage: 12.8 VDC
  • Polarity: Negative Ground
  • Polarity Protection: Diode / Fuse
  • Output Power: 200 Watts (2 outputs at 100 watts each)
  • Output Load: Two 11 OHM speakers
  • Input Current(OFF): 0 ma
  • Input Current(SIREN ON): 15 amps (max)
  • Standby Current: 10 ma (max)
  • Fuse: 20 amp (auto fuse)
  • Fuse Mounting: Spade type on PC Board
  • Output Short Protection: Fuse
  • Horn / Ring Control: +12VDC or Ground
  • Weight: 2.4 lbs / 1.2 kg
  • Operating Temperature: -30°C TO +60°C
  • Operating Humidity: 0-95% Non-condensing
  • Size: 2 1/4″ (54mm) H x 4 3/4″ (120mm) W x 5″ (127mm) D.
