SERIES 35-B JACKKNIFE A
Descripción

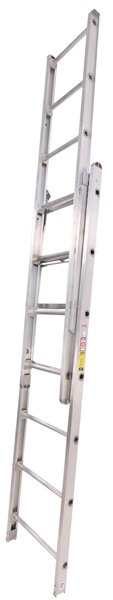

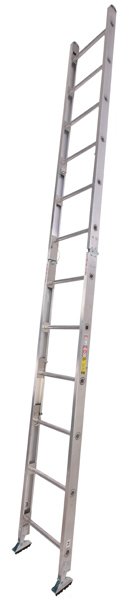

Una escalera inusualmente versátil con innumerables usos tanto para trabajos en interiores como en exteriores. Esta escalera de combinación sirve como una sola escalera resistente o se puede convertir fácilmente en una escalera tipo «A» resistente con doble escalada. El dispositivo de bloqueo de acero de calibre fuerte y resistente hace que el cambio sea fácil y rápido. Equipado con los famosos zapatos de escalera Duo-Safety para mayor seguridad.
| Size | Closed Length | Height as A-Type | Length as Single*** | Width** | Banking Thickness | Weight* |
|---|---|---|---|---|---|---|
| 4′-8′ | 4′ 1.875″ | 3′ 10.62″ | 8′ 1.75″ | 19.75″ | 8.37″ | 35 lbs |
| 6′-12′ | 6′ 1.125″ | 5′ 10.62″ | 12′ 1.75″ | 19.75″ | 8.37″ | 40 lbs |
| 7′-14′ | 7′ 1.875″ | 6′ 10.62″ | 14′ 1.75″ | 19.75″ | 8.37″ | 45 lbs |
| 8′-16′ | 8′ 1.875″ | 7′ 10.62″ | 16′ 1.75″ | 19.75″ | 8.37″ | 50 lbs |
| All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125″ due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please call our office and request a copy of our current field dimension sheets. | ||||||
| * Weight listed is actual weight of product only. For shipping purposes, please call our office for packaged weight before obtaining freight estimates. | ||||||
| ** Overall width including safety shoes = 20.5″ | ||||||
| *** Length includes safety shoes tilted in open position | ||||||
