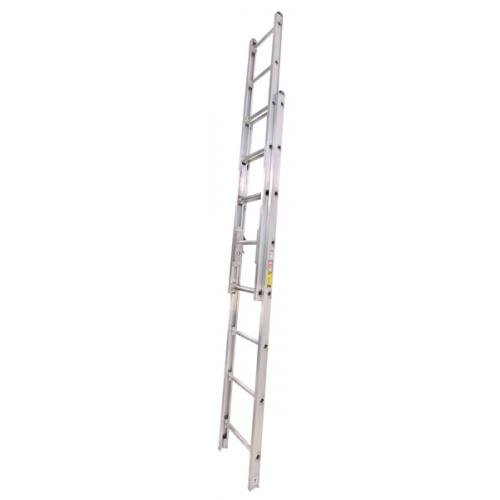

SERIES 1000-A
Descripción
Estos incorporan la exclusiva disposición de ranura y ranura de Duo-Safety. Este diseño de construcción sobresaliente sujeta las secciones con firmeza y rigidez, sin soportes, ganchos u obstrucciones de ningún tipo. Estas escaleras compactas requieren un mínimo de espacio bancario y tienen la ventaja adicional de ser especialmente estables y rígidas.
SERIES 1000-A
- 2-3/4″ Channel Rail
- 750 lb Duty Rated
- Prong Feet as Standard
- Rubber Safety Shoes Optional for Hard Surface Use
- Rope and Pulley Installed Standard on 16′ Length Only
- Sizes Less Than 16′ Raised By Hand
| SPECIFICATIONS | ||||
|---|---|---|---|---|
| SERIES 1000-A 2-SECTION | ||||
| Size | Closed Length | Width | Banking Thickness | Weight* |
| 10′ | 7′ 2.25″ | 18.5″ | 4.56″ | 29 lbs |
| 12′ | 8′ 2.25″ | 18.5″ | 4.56″ | 32 lbs |
| 14′ | 9′ 2.25″ | 18.5″ | 4.56″ | 34 lbs |
| 16′ ** | 9′ 11.5″ | 18.5″ | 4.56″ | 40 lbs |
| All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125″ due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please call our office and request a copy of our current field dimension sheets. | ||||
| * Weight listed is actual weight of product only. For shipping purposes, please call our office for packaged weight before obtaining freight estimates. | ||||
| ** Rope and pulley installed standard on 16′ length only. Sizes less than 16′ raised by hand | ||||
